Aluminum Base Shoes

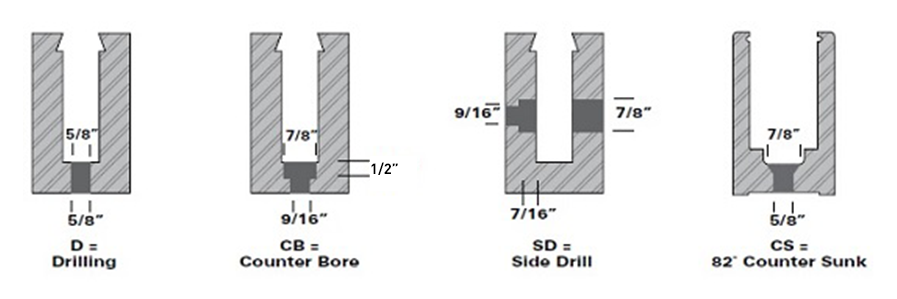

Base Section Hole Drilling Patterns (Optional)

Custom hole drilling for aluminum base is available with four standard drilling patterns for 1/2” cap screws and bolts. For standard drilling patterns, drilling begins 6” from the end and continues every 12” on center.

base_shoes
  • Wet Glaze Aluminum Base Shoes

    Extruded 6063-T5 or 6005-T5 Aluminum Bottom Rails in mill finish (other lengths available upon request). Codes for stocked drilling patterns can be found in the diagram above.

    Click on image to enlarge
    • A42-0064 A42-0064
    • A42-0076 A42-0076
    • A42-0088 A42-0088AEY10CB
    • A42-0090 A42-0090AEY10CB
    • A42-0099 A42-0099
    Product Details
    Part # Description Length CAD Drawing Cut Sheet Width Height
    A42-0064 Undrilled 10' or 20' Lengths
    A42-0076 Drilling 20' Lengths
    A42-0088AEY10CB Low Profile Wet Glaze Base Shoe 10' 2-1/4" 3-1/2"
    A42-0088AEY20CB Low Profile Wet Glaze Base Shoe 20' 2-1/4" 3-1/2"
    A42-0090AEY10CB Heavy Base Shoe for 1/2" Glass : Drilling, Counter Bore, Side Drill, Undrilled 10' 2-1/2" 4-1/8"
    A42-0090AEY20CB Heavy Base Shoe for 1/2" Glass : Drilling, Counter Bore, Side Drill, Undrilled 20' 2-1/2" 4-1/8"
    A42-0099 Counter Bore 10' Lengths
  • Hollow Base Shoe

    Holes drilled 12" on center. Also available with holes drilled 6" on center. Available in Counter Bore, Straight Drill, and Side Drilled Counter Bore.

    Click on image to enlarge
    • A42-0091-Drawing A42-0091AEY10CB
    Product Details
    Part # Description CAD Drawing Cut Sheet Length Width Height
    A42-0091AEY10CB Surface Mount Wet Glaze Base Shoe 10’ 2-1/2" 4-1/8"
    A42-0091AEY20CB Surface Mount Wet Glaze Base Shoe 20' 2-1/2" 4-1/8"
    A42-0091AEY10SD Fascia Mount Wet Glaze Base Shoe 10' 2-1/2" 4-1/8"
    A42-0091AEY20SD Fascia Mount Wet Glaze Base Shoe 20' 2-1/2" 4-1/8"
